Data Visualization in Oasis

This documentation outlines various visualization techniques and procedures available in the Oasis platform. These visualizations help analyze and interpret simulation results effectively.

​

Reddit Score Analysis

The Reddit Score Analysis visualization allows you to compare scores between different treatment groups in your simulations.

​

Prerequisites

• Completed simulation using scripts/reddit_simulation_align_with_human/reddit_simulation_align_with_human.py
• Generated database file and JSON file from the simulation

​

Steps to Generate Visualization

1. Set up file paths

   After running your simulation, modify the file paths in visualization/reddit_simulation_align_with_human/code/analysis_all.py:

   Copy

   if __name__ == "__main__":
       folder_path = ("visualization/reddit_simulation_align_with_human"
                      "/experiment_results")
       exp_name = "business_3600"  # Use your experiment name
       db_path = folder_path + f"/{exp_name}.db"
       exp_info_file_path = folder_path + f"/{exp_name}.json"
       analysis_score.main(exp_info_file_path, db_path, exp_name, folder_path)


2. Install dependencies

   Copy

   pip install matplotlib


3. Run the analysis script

   Copy

   python visualization/reddit_simulation_align_with_human/code/analysis_all.py


4. Examine Results

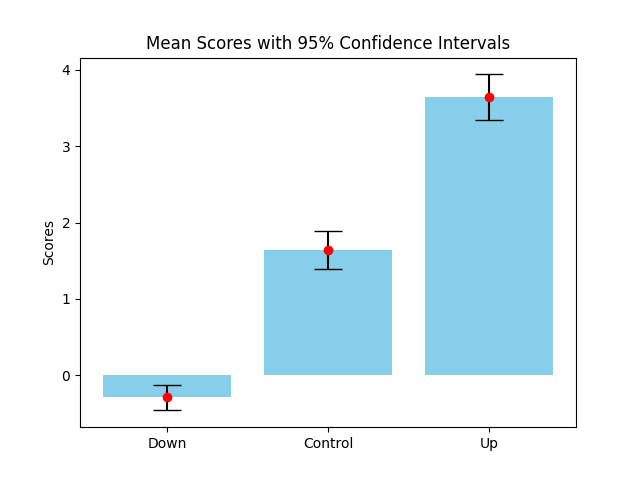

   The script will generate a visualization showing scores for three treatment groups (down-treated, control, up-treated) at the experiment’s conclusion.



​

Reddit Counterfactual Content Analysis

This visualization helps analyze differences in content across various treatment conditions.

​

Prerequisites

• OpenAI API key added to environment variables
• Completed simulation using scripts/reddit_simulation_counterfactual/reddit_simulation_counterfactual.py
• Generated database files from the simulation

​

Steps to Generate Visualization

1. Configure database paths

   After running your simulation, update the database file paths in visualization/reddit_simulation_counterfactual/code/analysis_couterfact.py:

   Copy

   db_files = [
       'couterfact_up_100.db',
       'couterfact_cnotrol_100.db',
       'couterfact_down_100.db'
   ]


2. Install dependencies

   Copy

   pip install aiohttp


3. Run the analysis script

   Copy

   python visualization/reddit_simulation_counterfactual/code/analysis_couterfact.py


4. Examine Results

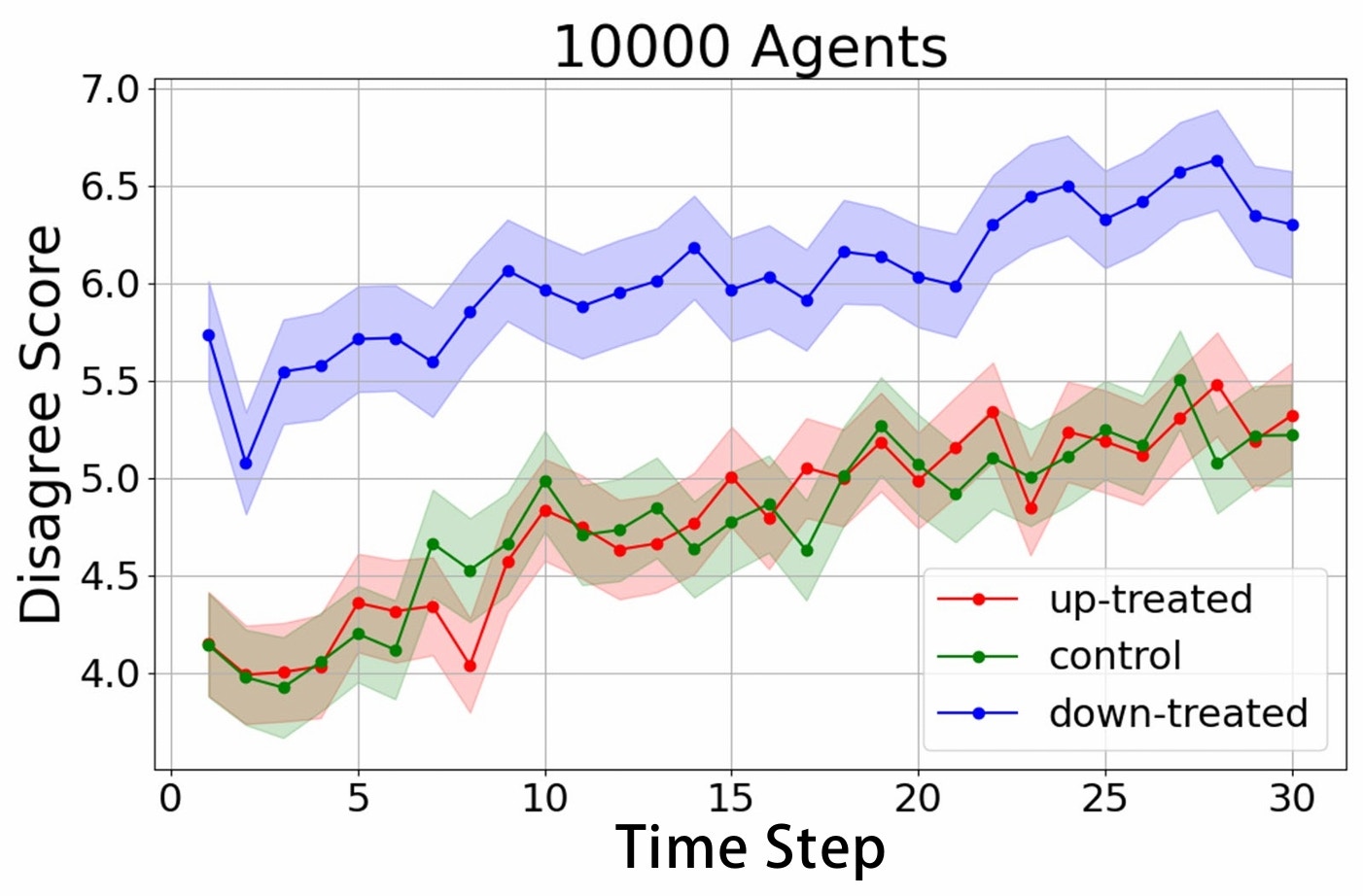

   The script will generate a visualization showing disagree scores for three treatment groups (down-treated, control, up-treated) at each timestep of the experiment.



​

Dynamic Follow Network Visualization

This visualization provides an interactive way to explore user follow relationships over time using Neo4j.

​

Prerequisites

• Neo4j account and a free instance
• Neo4j credentials (NEO4J_URI, NEO4J_USERNAME, and NEO4J_PASSWORD) saved as environment variables
• Completed simulation generating a database file

​

Steps to Create Visualization

1. Set up Neo4j

   • Register at https://neo4j.com/
   • Create a free instance
   • Obtain and save credentials as environment variables
   • Connect to the instance

2. Install dependencies

   Copy

   pip install neo4j


3. Configure database path

   Modify the database path in either:

   • visualization/dynamic_follow_network/code/vis_neo4j_reddit.py (for Reddit data)
   • visualization/dynamic_follow_network/code/vis_neo4j_twitter.py (for Twitter data)
   Copy

   if __name__ == "__main__":
       sqlite_db_path = "all_360_follow.db"  # Replace with your SQLite database path
       main(sqlite_db_path)


4. Run the appropriate script

   Copy

   python visualization/dynamic_follow_network/code/vis_neo4j_reddit.py
   # or
   python visualization/dynamic_follow_network/code/vis_neo4j_twitter.py


5. Explore the visualization

   • Visit https://console.neo4j.io/ dashboard
   • Use the explore page
   • In the search bar, select user-follow-user
   • For the slicer, choose follow-timestamp to visualize changes in follow relationships over time

​

Additional Visualization Options

Beyond the core visualization techniques described above, the Oasis platform supports customized visualizations based on specific simulation needs. Developers can extend existing visualization modules or create new ones for specialized analysis requirements.

For further assistance with visualization tools or to request additional visualization features, please refer to the project documentation or contact the development team.
